AIROSD Swimming Pool Heat pump
Applicable to swimming pool, SPA or fish cultivation. Can be used for household & commercial.OEM design optional. Different color available.CE approved.
1.png)
Small water temp difference only 1-5 deg c.
Both water heating & cooling, Min 8°C/ Max 40°C.Auto flow detect.
.png)
Safe and reliable
Titanium heat exchanger in PVC shell , virtually impervious to water chemistry damage.Insufficient water flow protection & high/low pressure protection.Auto 4-way-valve defrost, ensure reliably running at cold ambient temp.
.png)

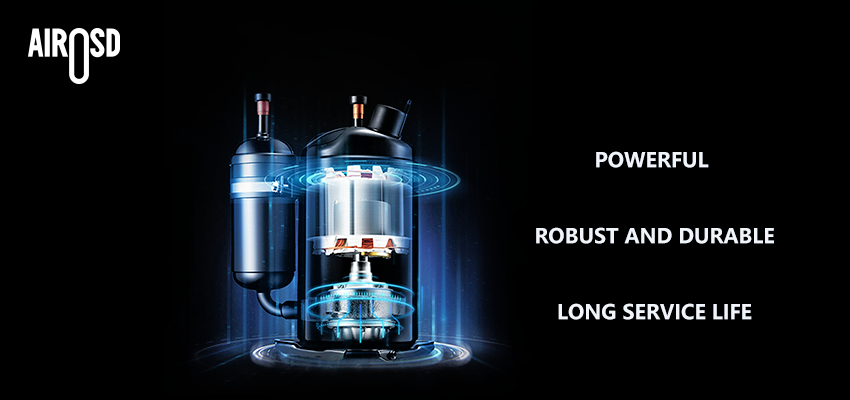

World famous Japanese brand compressor
Special materials are selected for special parts, and the characteristics of low wear, low energy consumption, high efficiency and durability are still maintained during long-term operation.
.png)
Widely choose for heating capacity
Working ambient temperature down to - 15 ° C, The unit will be not affected by wind, rain, thunder and snow weather.
.png)
Environmentally friendly refrigerant R410a
The air source heat pump uses the heat in the air to convert hot water. There is no emission and pollution during operation.
.png)
Note：

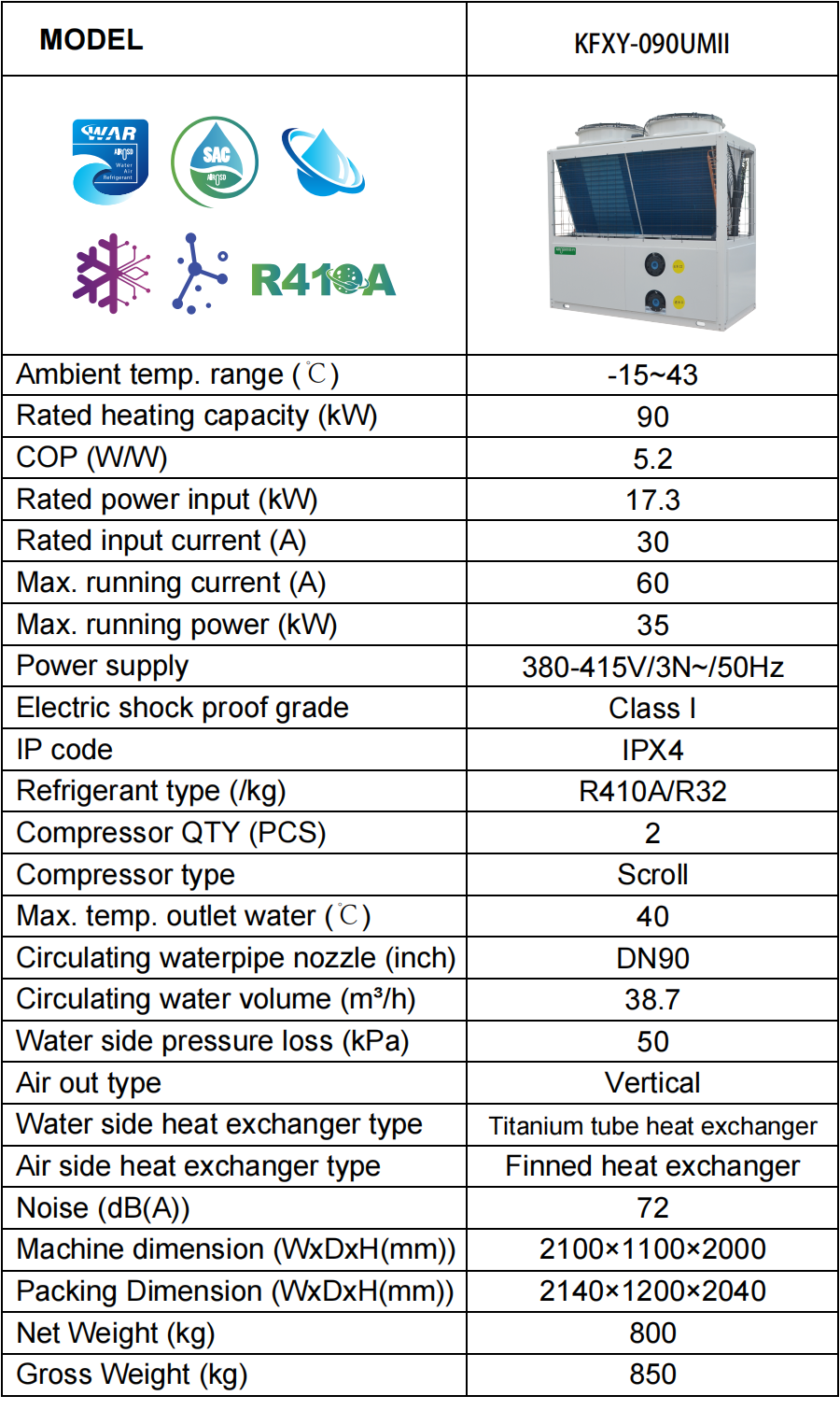

1. Test conditions: dry bulb temperature 20℃ / wet bulb temperature 15℃, Pool inlet water temperature 26℃/outlet water temperature 28℃.
2. Models and parameters are subject to change without notice due to product improvement. Specific parameters are subject to the nameplate parameters.

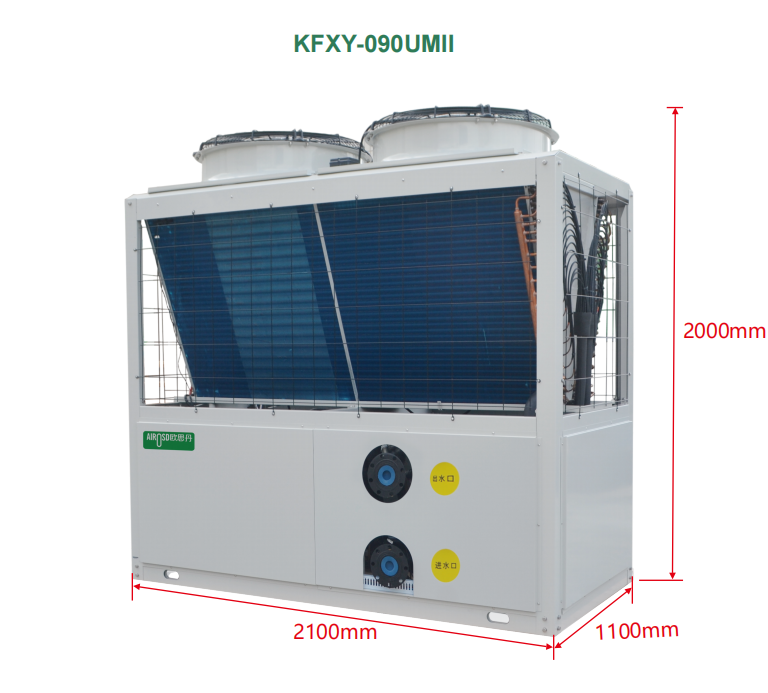

Dimension outline drawing
